Trang chủ > LINH KIỆN DESKTOP > MB for CPU AMD
Sản phẩm tương tự Mainboard GIGABYTE GA-AB350M-Gaming 3 (rev. 1.0) Socket AM4 817S

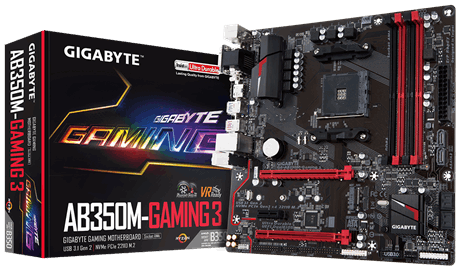

Mainboard GIGABYTE GA-AB350M-Gaming 3 (rev. 1.0) Socket AM4 817S

Giá: 2,500,000 VNĐ

  • Bảo hành: 36 Tháng
  • Đã bao gồm VAT
Đặt mua
Bộ bán hàng chuẩn

K

Mua trả góp Đăng ký mua trả góp
khuyến mãi


CPU

   AM4 Socket:

  1. AMD Ryzen™ processor
  2. AMD 7th Generation A-series/ Athlon™ processor



Chipset

      AMD B350

Bộ nhớ

  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
    * Support for higher than DDR4 2667 MHz may vary by CPU.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Card đồ họa tích hợp

Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 2

Âm thanh

  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out



LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Khe cắm mở rộng

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * Actual support may vary by CPU.
  3. 1 x PCI Express x1 slot
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)



Giao diện lưu trữ

  •   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
    * Actual support may vary by CPU.
  •   6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10

Kết nối bảng phía sau

  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 3.1 Gen 2 Type-A ports (red)
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks (Line In, Line Out, Mic In)



Hệ điều hành

  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.



Hệ số khuôn

Micro ATX Form Factor; 24.4cm x 24.4cm


CPU

   AM4 Socket:

  1. AMD Ryzen™ processor
  2. AMD 7th Generation A-series/ Athlon™ processor



Chipset

      AMD B350

Bộ nhớ

  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
    * Support for higher than DDR4 2667 MHz may vary by CPU.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Card đồ họa tích hợp

Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 2

Âm thanh

  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out



LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Khe cắm mở rộng

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * Actual support may vary by CPU.
  3. 1 x PCI Express x1 slot
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)



Giao diện lưu trữ

  •   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
    * Actual support may vary by CPU.
  •   6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10

Kết nối bảng phía sau

  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 3.1 Gen 2 Type-A ports (red)
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks (Line In, Line Out, Mic In)



Hệ điều hành

  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.



Hệ số khuôn

Micro ATX Form Factor; 24.4cm x 24.4cm
