General Specifications
|
|
Type
|

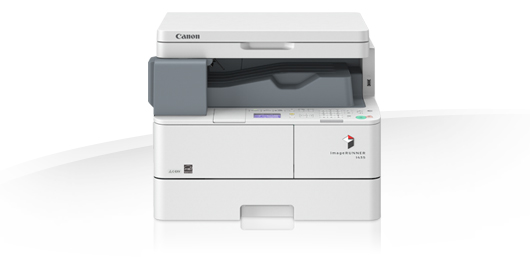

A4 Monochrome Multifunctional Device (Reader / Printer Desktop)
|
Copy / Print Speed
|
35ppm (A4)
|
Warm-Up Time
|
20 seconds or less
|
Recovery from sleep mode
|
7.8 seconds or less
|
First Copy Time
|
6.9 seconds or less
|
Processor Speed
|
533Mhz
|
Memory
|
512 MB
|
Interface
|
Network:
|
10Base-T, 100Base-TX, 1000Base-T
|
Others:
|
USB2.0 x 1 USB1.1 x 1
|
Dimensions (H x W x D)
|
422.5 x 545 x 457mm
|
Weight
|
Approximately 22.34kg
|
Installation Space (W × D)
|
772.1 x 457mm (when the multi-purpose tray is extended)
|
Power Supply
|
220 to 240V AC, 50 / 60Hz, 3.8A
|
Max Power Consumption
|
1.5 kWh or less
|
Toner Yield (A4, 6% coverage)
|
17600
|
Drum Yield
|
35500
|
Print Specifications
|
Print Resolution
|
600 x 600dpi
|
Paper Input Capacity (Standard)
|
Cassette 1:
|
500 sheets (80gsm)
|
Multi Purpose Tray:
|
100 sheets (80gsm)
|
Paper Input Capacity (Option)
|
Cassette 2:
|
500 sheets (80gsm)
|
Paper Weight
|
Cassette 1,2:
|
64 - 90gsm
|
Multi Purpose Tray:
|
60 - 128gsm
|
Page Description Language(s)
|
UFRII LT (Standard), PCL5e/6 (Optional), Adobe PostScript 3 (Optional)
|
Operating System compatibility
|
UFR II LT:
|
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Mac OS X 10.5.8 and later
|
PCL:
|
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
|
PS:
|
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Mac OS X 10.5.8 and later
|
Network Protocol
|
TCP/IP (IPv4 / IPv6)
Frame type: Ethernet II
Print applications: LPD / Raw / IPP / WSD / SMB
|
Copy Specifications
|
Copy Resolution
|
600 x 600dpi
|
Paper Input Size
|
Cassette 1 (Standard):
|
A4R
|
Cassette 2 (Option):
|
Type A4: A4R
Type U: A4R, FOOLSCAP
|
Multi Purpose Tray:
|
A4R, A5R, B5R, A-FLS, FOOLSCAP,
16K, Envelope (C5 / DL / COM-10 / Monarch)
|
Multiple Copies / Prints
|
Up to 999 copies
|
Reduction / Enlargement
|
Copy Ratio:
|
Zoom: 25-400% in 1% increments
Fixed Zoom Ratio: 25%, 50%, 70%, 100%, 141%, 200%, 400%
|
Colour Scan Specifications
|
Scan Resolution
|
BW / Colour: 300 x 600dpi, 600 x 600dpi
|
Scan Speed (A4, 300dpi)
|
1 sided:
|
BW: 28 sheets/minute
CL: 10 sheets/minute
|
Scan Resolution
|
300 x 600dpi , 600 x 600dpi
|
Push Colour Scan
|
N/A
|
USB Memory Media
|
Pull Colour Scan / Remote Scan
|
ScanGear MF, application compatible with TWAIN/WIA
|
Address Book
|
LDAP, Local (Max. 300)
|
File Format
|
PDF, PDF (Compact), PDF (OCR), PDF (Compact/OCR), JPEG, TIFF
|
Fax Specifications
|
|
Applicable Line
|
N/A
|
Modem Speed
|
N/A
|
Fax Resolution
|
N/A
|
Fax Speed Dial
|
N/A
|
Address Book Capacity
|
N/A
|
Compression Method
|
N/A
|
Fax Memory Capacity
|
N/A
|
Memory Lock PIN
|
N/A
|
PC-fax
|
N/A
|
Remote Reception
|
N/A
|
Auto Receive Reduction
|
N/A
|
Auto Double-sided Fax Print
|
N/A
|
Optional Accessories
|
CASSETTE MODULE - AC1 U
|
Paper Sizes
|
A4R, FOOLSCAP
|
Paper Capacity
|
500 sheets (80gsm)
|
Dimensions (H x W x D)
|
154.8 x 520 x 450.8mm
|
CASSETTE MODULE - AC1 A4
|
Paper Sizes
|
A4R
|
Paper Capacity
|
500 sheets (80gsm)
|
Dimensions (H x W x D)
|
154.8 x 520 x 450.8mm
|
