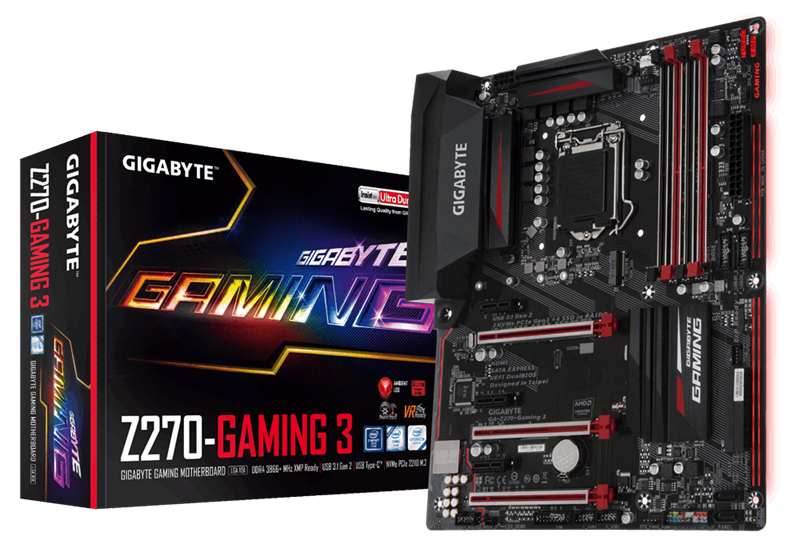

MAINBOARD GIGABYTE GA-Z270X-Gaming 3 SOCKET LGA1151 817S

Giá: 4,300,000 VNĐ

  • Bảo hành: 36 Tháng
  • Đã bao gồm VAT
Đặt mua
Bộ bán hàng chuẩn

K

Mua trả góp Đăng ký mua trả góp
khuyến mãi

  ·         CPU

1.    Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

2.    L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

·         Chipset

1.    Intel® Z270 Express Chipset

·         Memory

1.    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.    Dual channel memory architecture

3.    Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules

4.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.    Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

·         Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1.    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.

2.    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 1 GB

·         Audio

1.    Realtek® ALC1220 codec

2.    High Definition Audio

3.    2/4/5.1/7.1-channel

4.    Support for S/PDIF Out

·         LAN

1.    Killer™ E2500 LAN chip (10/100/1000 Mbit)

·         Expansion Slots

1.    1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2.    2 x PCI Express x16 slots, running at x4 (PCIEX4_1 and PCIEX4_2)

3.    3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

·         Storage Interface

Chipset:

1.    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

2.    2 x SATA Express connectors

3.    6 x SATA 6Gb/s connectors

4.    Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

·         Multi-Graphics Technology

1.    Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies (PCIEX16 and PCIEX4_1)

·         USB

Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:

1.    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

2.    1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset:

3.    8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

4.    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

·         Internal I/O Connectors

1.    1 x 24-pin ATX main power connector

2.    1 x 8-pin ATX 12V power connector

3.    1 x M.2 Socket 3 connector

4.    2 x SATA Express connectors

5.    6 x SATA 6Gb/s connectors

6.    1 x CPU fan header

7.    1 x water cooling CPU fan header

8.    2 x system fan headers

9.    1 x system fan/water cooling pump header

10.                                               1 x front panel header

11.                                               1 x front panel audio header

12.                                               1 x S/PDIF Out header

13.                                               2 x USB 3.1 Gen 1 headers

14.                                               2 x USB 2.0/1.1 headers

15.                                               1 x Trusted Platform Module (TPM) header

16.                                               1 x Thunderbolt™ add-in card connector

17.                                               1 x Clear CMOS jumper

·         Back Panel Connectors

1.    1 x PS/2 keyboard/mouse port

2.    1 x DVI-D port

3.    1 x HDMI port

4.    1 x USB Type-C™ port, with USB 3.1 Gen 2 support

5.    1 x USB 3.1 Gen 2 Type-A port (red)

6.    4 x USB 3.1 Gen 1 ports

7.    2 x USB2.0/1.1 ports

8.    1 x RJ-45 port

9.    6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

·         I/O Controller

1.    iTE® I/O Controller Chip

·         H/W Monitoring

1.    Voltage detection

2.    Temperature detection

3.    Fan speed detection

4.    Overheating warning

5.    Fan fail warning

6.    Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

·         BIOS

1.    2 x 64 Mbit flash

2.    Use of licensed AMI UEFI BIOS

3.    Support for DualBIOS™

4.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

·         Unique Features

1.    Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner

2.    Support for 3TB+ Unlock

3.    Support for Q-Flash

4.    Support for Xpress Install

·         Bundle Software

1.    Norton® Internet Security (OEM version)

2.    Intel® Optane™ Memory Ready

·         Operating System

1.    Windows® 10 64-bit (for 7th Generation Intel® Processors)

2.    Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

·         Form Factor

1.    ATX Form Factor; 30.5cm x 24.4cm

·         Box Contents

1.    GA-Z270-Gaming 3 motherboard

2.    Four SATA cables

3.    Motherboard driver disk

4.    I/O Shield

5.    User's Manual

6.    One G Connector

7.    Quick Installation Guide
