Specifications

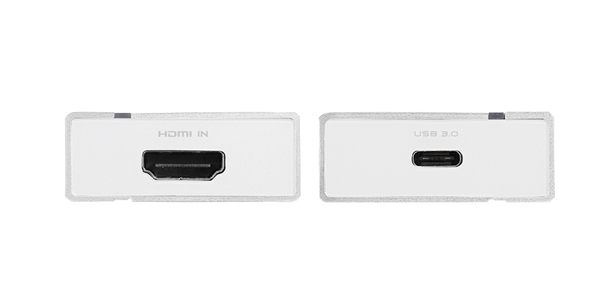

Interface: USB 3.0 (plug and play, UVC)
Input: HDMI
Output: USB 3.0 Type-C (USB 2.0 compatible)
Output format : MJPEG, YUY2
Audio sampling rate: 48 KHz PCM over HDMI
Resolutions: 640x480, 720x480, 720x576, 800x600, 1024x768, 1280x720, 1280x1024, 1600x1200, 1920x1080
Dimensions (W x D x H): 85 x 43 x 17 mm
Weight: 82 g
System Requirements
Windows® 10 / Windows 8.1 / Windows 7 (SP1)
Desktop: Intel® Core™ i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above
Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above
4 GB RAM (8 GB recommended)
Compatibility
Operating system:
- Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
- OS X (10.10 or above)
- Linux Ubuntu 14.04
Software (including but not limited to):
- OBS (Windows, Mac)
- XSplit (Windows)
- Wirecast (Windows, Mac)
- Adobe Flash Media Live Encoder (Windows)
- DirectShow (Windows)
- DirectSound (Windows)
- Edius Pro 8 (Windows)
- vMix (Windows)
- QuickTime Player (Mac)
- VLC (Mac)
- Safari (Mac)
- Firefox (Mac)
- Chrome (Mac)
- Skype (Mac)

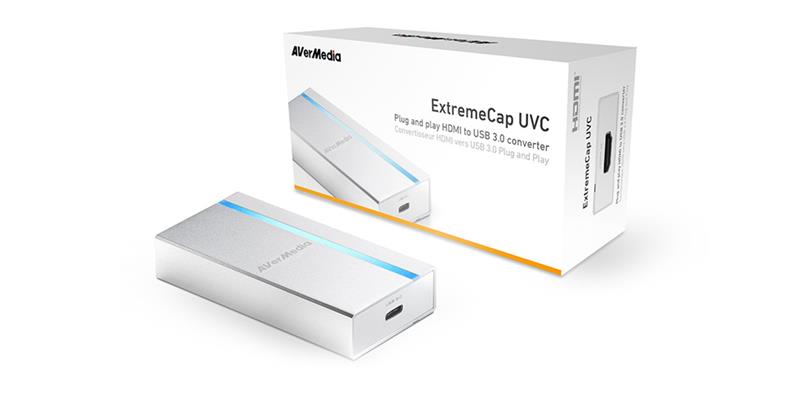

In the Box
ExtremeCap UVC
USB Type-C cable
Quick guide
