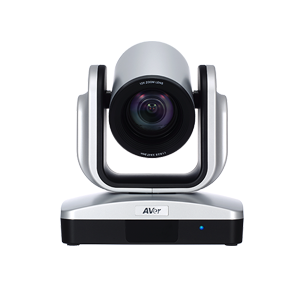

Camera AVer CAM530 12x USB & HDMI PTZ Conference (618)

Giá: 21,000,000 VNĐ

Bảo hành: 24 Tháng
Đã bao gồm VAT

Đặt mua

Bộ bán hàng chuẩn

Mua trả góp Đăng ký mua trả góp

Mô tả khác

Thông số kỹ thuật

Camera
Image Sensor	2M pixel CMOS sensor
Zoom	12X optical zoom
Type	Pan-Tilt-Zoom
Compatibility
Type	USB 2.0
Application	Skype™, Skype for Business, Blue Jeans, ZOOM, Microsoft® Lync™, Google Hangout, Cisco WebEx® , GoToMeeting™, WebRTC, Wirecast, vMix, XSplit, Adobe Connect
HDMI
Type	HDMI 1.3
Application	Simultaneous output to HDMI and USB

System
Description	USB 2.0 HDMI 12x PTZ camera
Maximum reach	PC to camera 16' (included USB cable)
Options	20m USB 2.0 cable by 3rd party
Camera
Description	12x optical zoom wide angle auto focus 1080p mechanical PTZ camera
Image sensor	1/2.8" 60fps low lux 2M pixel CMOS sensor
Scan	Progressive scan
Zoom ratio	12x lossless true optical zoom
Lens	Multiple element precision glass optics with auto focus and multi coating
Lens focal length	f = 3.9mm(wide) ~ 46.1mm(tele)
Field of view	Horizontal 72° (wide) ~ 6.3° (tele)
Lens F#	F = 1.8(wide) ~ 2.8 (tele)
Minimum Illumination	3.5 lx (50 IRE, F1.8, shutter 1/30 )
Minimum working distance	1.5m
Mechanical pan	±130°
Mechanical tilt	90°(up)+25°(down)
Mechanical pan/tilt step	Pan 0.45°; Tilt 0.40°
Pan Tilt Zoom control	IR remote; USB: UVC 1.1; RS232: VISCA; AVer PTZapp
Position preset	10 locations by remote,RS232 100 positions
USB 2.0 camera	UVC (USB Video Class) 1.1
USB UVC 1.1 format	1080p 60/30/15, 720p 30/15 down to 160x90 30/15
Video encoder	MJPEG, H.264 AVC high profile/base profile, H.264 SVC-T
HDMI Format	Controlled by on screen menu auto or dip switch
White balance	Auto/Manual color temperature adjustment through standard UVC command
Additional features	BLC (Back Light Compensation)
Mount	Standard tripod thread
Security	Kensington slot
Dimensions	180 x 140 x 182 mm
Weight	1.5kg
Remote control
Description	Infrared remote control with 10 camera preset
Dimension	50 x 200 x 20 mm
Weight	0.05kg
Environment
Operating temperature	0°C ~ +40°C
Operation humidity	35% ~ 90%
Storage temperature	-20°C ~ +60°C
Storage humidity	35% ~ 90%
Compatibility and compliance
USB	USB 2.0 UVC video and audio for broad application compatibility
Driver	No driver needed for Windows 7, 8, 8.1, 10; Mac OSX
Application compatibility	Skype™, Skype for Business, Blue Jeans, ZOOM, Microsoft® Lync™, Google Hangout, Cisco WebEx® , GoToMeeting™, WebRTC, Wirecast, vMix, XSplit, Adobe Connect
Additional tools	AVer PTZapp for additional controls and firmware update
Accessories
Camera mount	Included for tabletop stand, wall, ceiling installation
Cable	16' USB cable, 3M HDMI cable, RS232 adapter
