Tên gọi
|

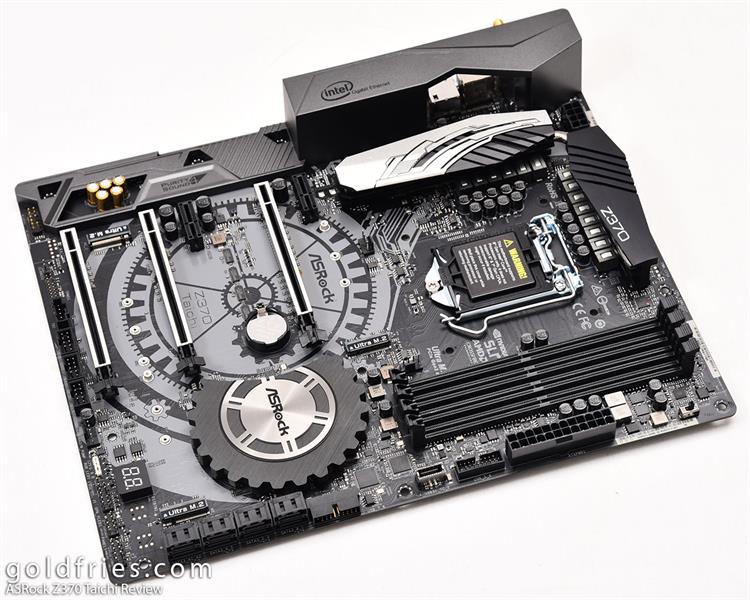

Asrock Z370 Taichi
|
CPU hỗ trợ
|
Intel® Socket 1151 for 8th Generation Core™ Processors
|
Chipset / Socket
|
Intel® Z370
|
Bộ nhớ (RAM)
|
• 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/
3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
|
Công nghệ đa GPU
|
• Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
• Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
|
Khe cắm mở rộng
|
• 3 x PCI Express 3.0 x16 Slots
• 3 x PCI Express 3.0 x1 Slots
• Supports NVIDIA® Quad SLI™ and SLI™
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
|
LAN
|
• Intel® I219V
|
Âm thanh
|
• Realtek ALC1220 Audio Codec
|
Cổng kết nối (Internal)
|
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel® Z370) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142)
- 1 x Dr. Debug with LED
- 1 x XMP Switch
- 1 x BIOS B Select Jumper
|
Cổng kết nối (Back Panel)
|
• 2 x Antenna Ports
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
• 4 x USB 3.1 Gen1 Ports (Intel® Z370) (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
|
Công nghệ độc quyền
|
• ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
• ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
• ASRock Intel® 4-Layer Memory POOL (Planes on OuterLayers) Technology
• ASRock Steel Slots
• ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop
|
Phụ kiện đi kèm
|
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 3 x Screws for M.2 Sockets
|
Hệ điều hành khuyến nghị
|
• Windows® 10 64-bit
|
Chuẩn kích cỡ
|
• ATX Form Factor
|
