Tên gọi
|

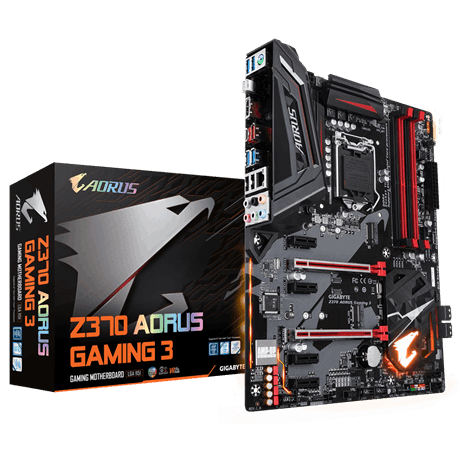

GIGABYTE Z370 AORUS Gaming 3
|
Chipset / Socket
|
Intel® Z370 Express Chipset / Intel Socket 1151 (Version 2)
|
CPU hỗ trợ
|
8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors
|
Bộ nhớ (RAM)
|
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for Extreme Memory Profile (XMP) memory modules
|
Khe cắm mở rộng
|
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4))
• 2 x M.2 connector
• 1 x M.2 connector
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Intel® Optane™ Memory Ready
|
Âm thanh
|
• Realtek® ALC1220 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
|
LAN / Wireless
|
• Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit)
|
Cổng kết nối
|
• 1 x PS/2 keyboard/mouse port
• 1 x OCSW button
• 1 x HDMI port
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks
|
Chuẩn kích cỡ
|
• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
|
Đa GPU
|
• Supports 2-Way AMD® CrossFire™ Technology*
|
