| Model |

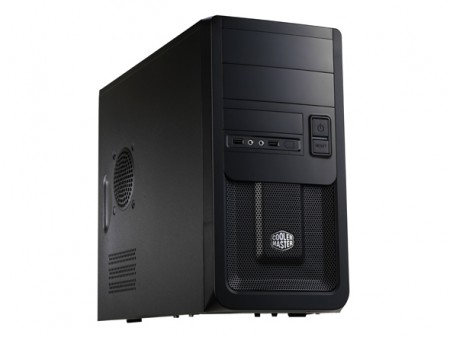

RC-343 |
| Available Color |
Black |
| Materials |
Steel Body ; ABS plastic ; Mesh Front bezel |
| Dimension (W x H x D) |
183 x 356.7 x 445.8 mm / 7.2 x 14.0 x 17.5 inch |
| Weight |
Net Weight: 4.0 kg/ 8.84 lbs
Gross Weight: 5.1 kg / 11.24 lbs |
| M/B Type |
Micro-ATX |
| 5.25" Drive Bays |
2 Exposed |
| 3.5" Drive Bays |
5 Hidden
1 Exposed |
| I/O Panel |
USB 2.0 x 2 , Spk x 1 , Audio x 1 , IEEE 1394a (optional) , e-SATA (optional) |
| Expansion Slots |
4 |
| Cooling System |
Front: 120 x 25mm fan x 1 / 1200 RPM / 17 dBA (pre-install) ; 80/90mm (optional)
Rear: 80/90 mm fan x 1 (optional)
Side: 90mm fan x 1 (optional) |
| Power Supply Type |
Standard ATX PS2 |
| Standard ATX PS2 |
VGA card length: 250mm / 12.4 inch (with HDD cage), 363mm / 14.3 inch (w/o HDD cage)
CPU cooler height: 148mm / 5.8 inch |
