Model Number |
Black: CMS-693-KKN1
CMS-693-KWN1 (with side panel window)
Green: CMS-693-GWN1 (with side panel window) |

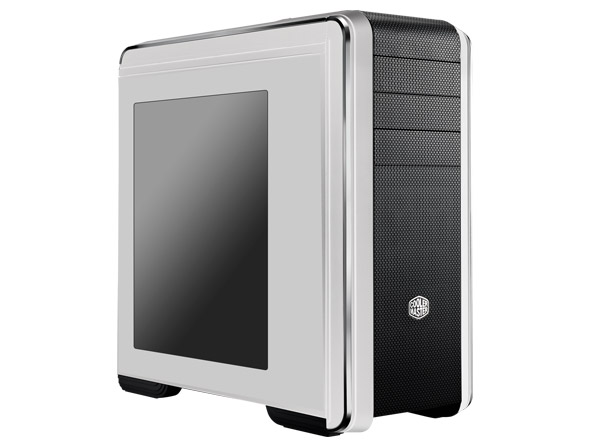

White: CMS-693-WWN1-V2 |
Available Color |
Midnight Black, Green |
White |
Materials |
Polymer, mesh front bezel |
Dimensions (W x H x D) |
230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inch |
Net Weight |
8.9 kg / 19.6 lbs |
8.7 kg / 19.2 lbs |
M/B Type |
microATX, ATX |
5.25" Drive Bays |
3 (exposed) |
3.5" Drive Bays |
7 (hidden) |
3 (hidden) |
2.5" Drive Bays |
10 (hidden; 7 from the HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the bottom) |
5 (hidden); 3 from the HDD/SSD combo cages, 2 from M/B tray, or 5.25" bay, or bottom Panel |
I/O Panel |
USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio) |
USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports HD Audio) |
Expansion Slots |
7+1 |
Cooling System |
Top: 120/140mm fan x 2, or 200mm fan x 1 (optional)
Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 , 180mm fan x 1(optional)
Rear: 120mm fan x 1 (installed)
Side: 120mm fan x 2 or 180/200mm fan x 1(optional) - for CMS-693-KKN1 (standard version) only
Bottom: 120mm fan x 1 (optional)
HDD cage: 120mm fan x 1 (optional) |
Top: 120/140mm fan x 2, or 200mm fan x 1 (optional)
Front: 120/140mm fan x 2 (installed 1 x 140mm fan), or 200/180mm fan x 1 (optional)
Rear: 120mm fan x 1 (installed)
Bottom: 120mm fan x 1 (optional) |
Power Supply Type |
Standard ATX PS2 |
Standard ATX PS2 (optional) |
Maximum Compatibility |
VGA card length:
423 mm / 16.6 inch (without cage)
312mm / 12.3 inch (with SSD cage)
280mm / 11.0 inch (with HDD cage)
CPU cooler height: 171mm / 6.7 inch |
VGA card length:
423 mm / 16.6 inch (w/o cage)
CPU cooler height: 171mm / 6.7 inch |
